Mass Transfer Trays
Valve, sieve, bubble cap, and dual-flow trays configured by our tray design team to keep your towers operating at their maximum potential.

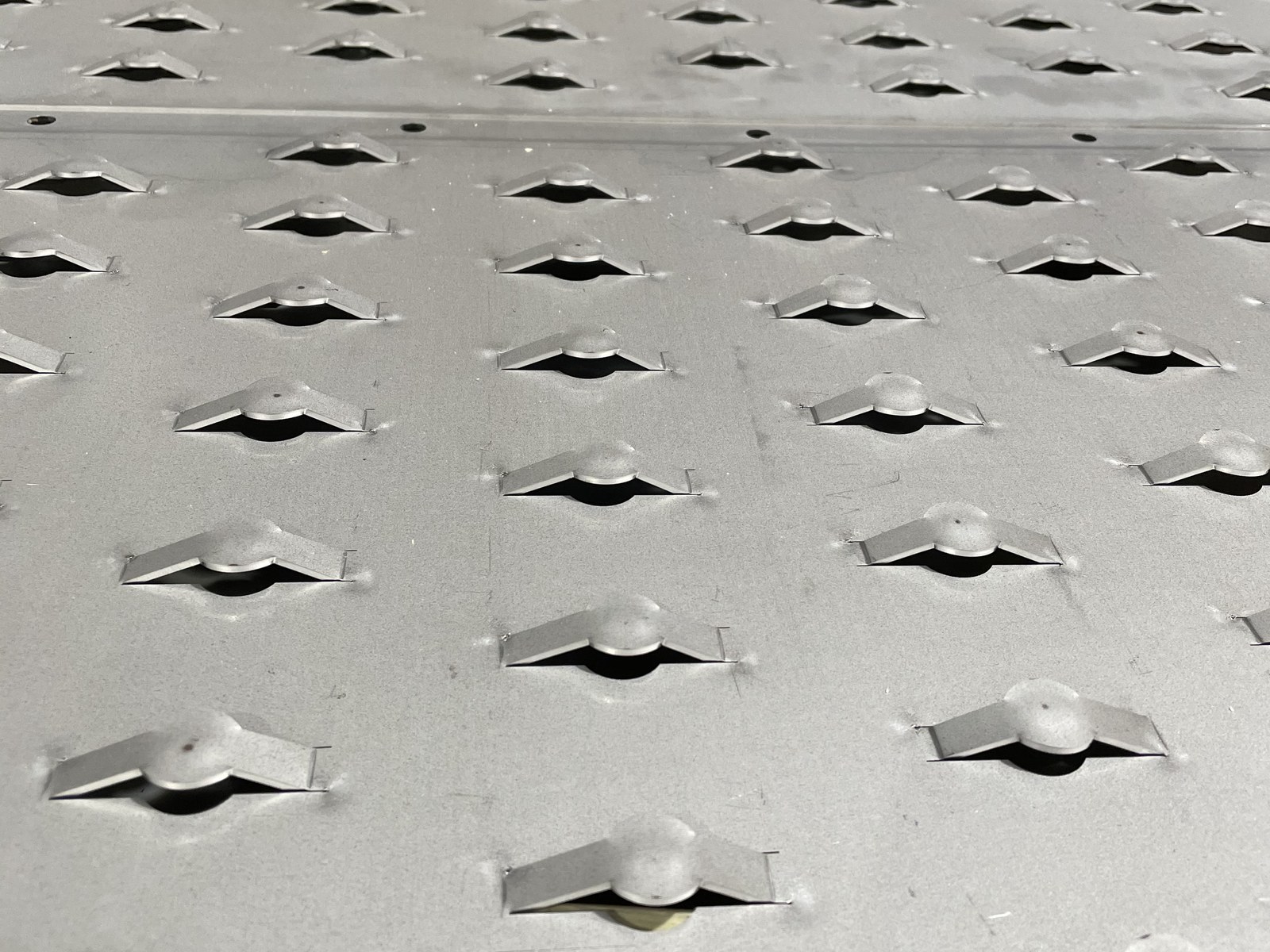

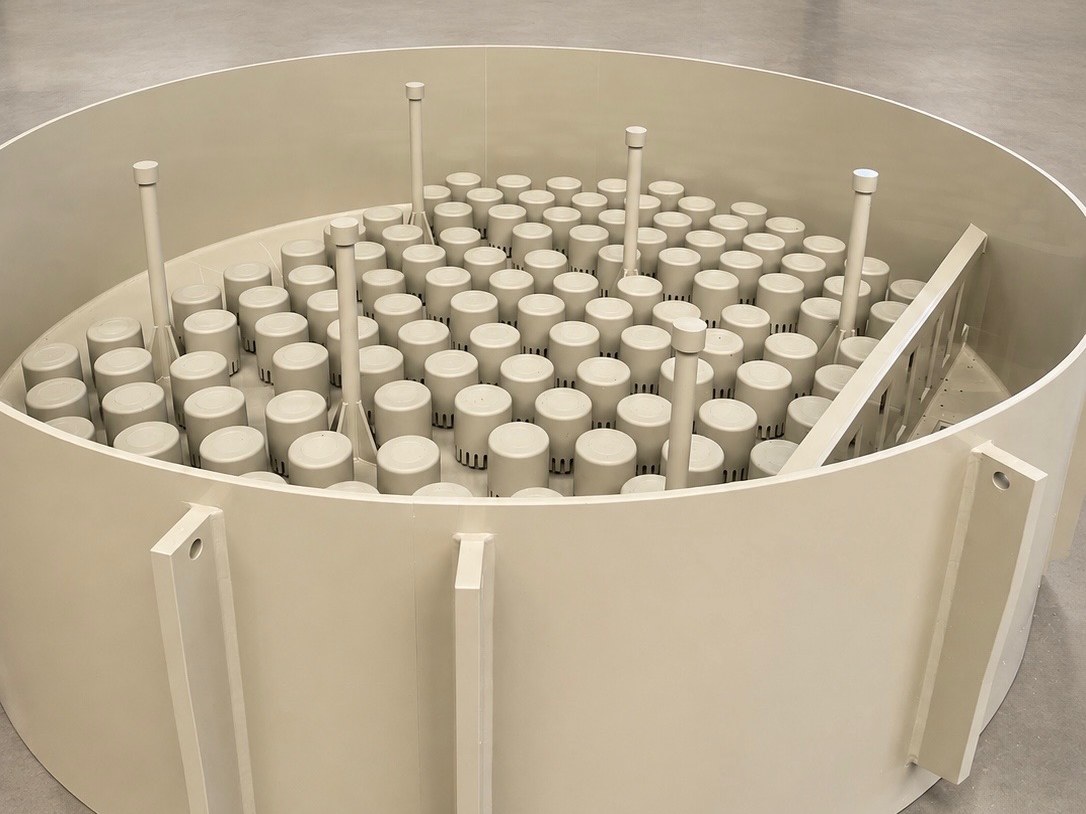

Where trays are the right contacting device, M10’s tray design team configures the optimum layout for your service. Fixed and moving valve trays deliver high capacity and turndown; sieve trays are simple, economical, and easy to maintain for clean, steady service; bubble-cap and tunnel trays hold a liquid seal down to very low vapor rates for extreme turndown; and dual-flow trays maximize capacity and resist fouling and coking where reliability matters most.
A full range of valve styles, downcomer arrangements, and tray materials is available, and every tray package is engineered to your column diameter, loading, and turndown requirements — including caged-valve and bolted cartridge trays for small-diameter columns and man-way installation where welded trays won’t fit.
Gallery
Key Features
- Fixed & moving valve, sieve, bubble-cap, dual-flow, and cartridge trays
- Engineered downcomers and valve styles
- High capacity with wide turndown
- Configured to your column and service
Typical Applications
Materials of Construction
Stainless steels, carbon steel, and exotic alloys, selected to the service.
